Bioactive, Human TIGIT Dimer, His-Avi Tag
| Product Code | CSP-24028-03 |
| Expression Host | HEK293T |
| Verified Applications | ELISA for TIGIT-specific antibody, Nectin-4 ligand protein, and CD155 ligand protein binding assays. |
| Suggested Applications | SPR & BLI for TIGIT-specific antibody, Nectin-4 ligand protein and CD155 receptor protein binding assays. Animal immunization, RUO. |
| Purity | Greater than 90% dimer form as determined by SDS-PAGE under non-reducing condition |
| Amino Acid Range | Met22-Phe141 |
For Research Use Only
Price: $125.00
Price: $195.00
Price: $350.00
Price: $750.00
Price: $2,500.00

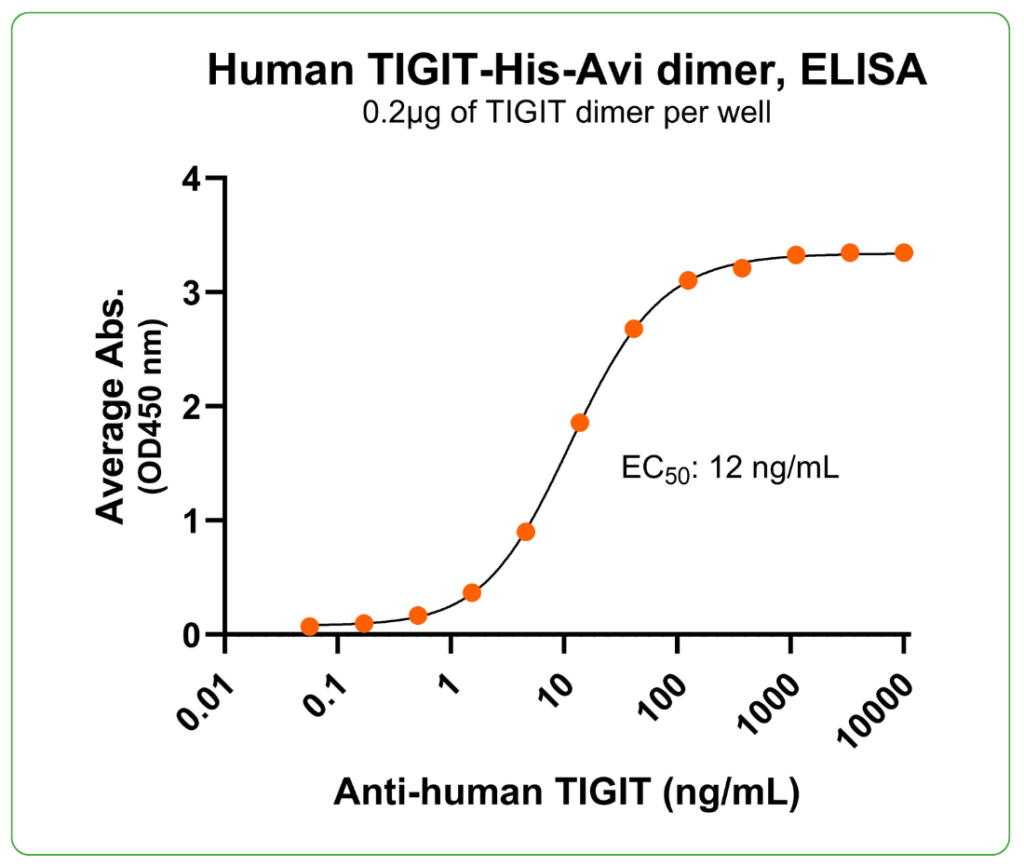

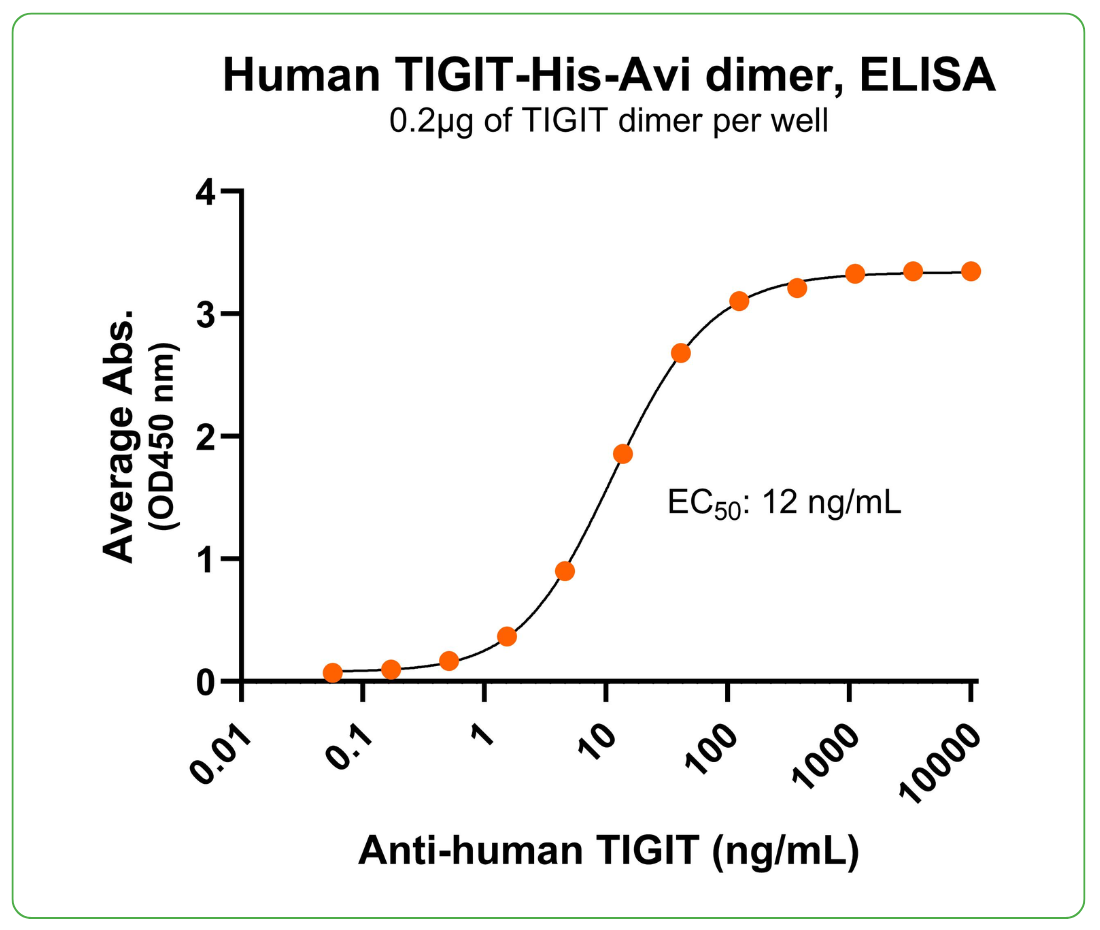

Bioactivity – Antibody Binding
Immobilized TIGIT-His-Avi dimer protein (Cat. No. CSP-24028-03) at 2 μg/mL (100 μL/well) can bind anti-human TIGIT monoclonal antibody with half maximal effective concentration (EC50) range of 6.2-24.8 ng/mL (QC tested).

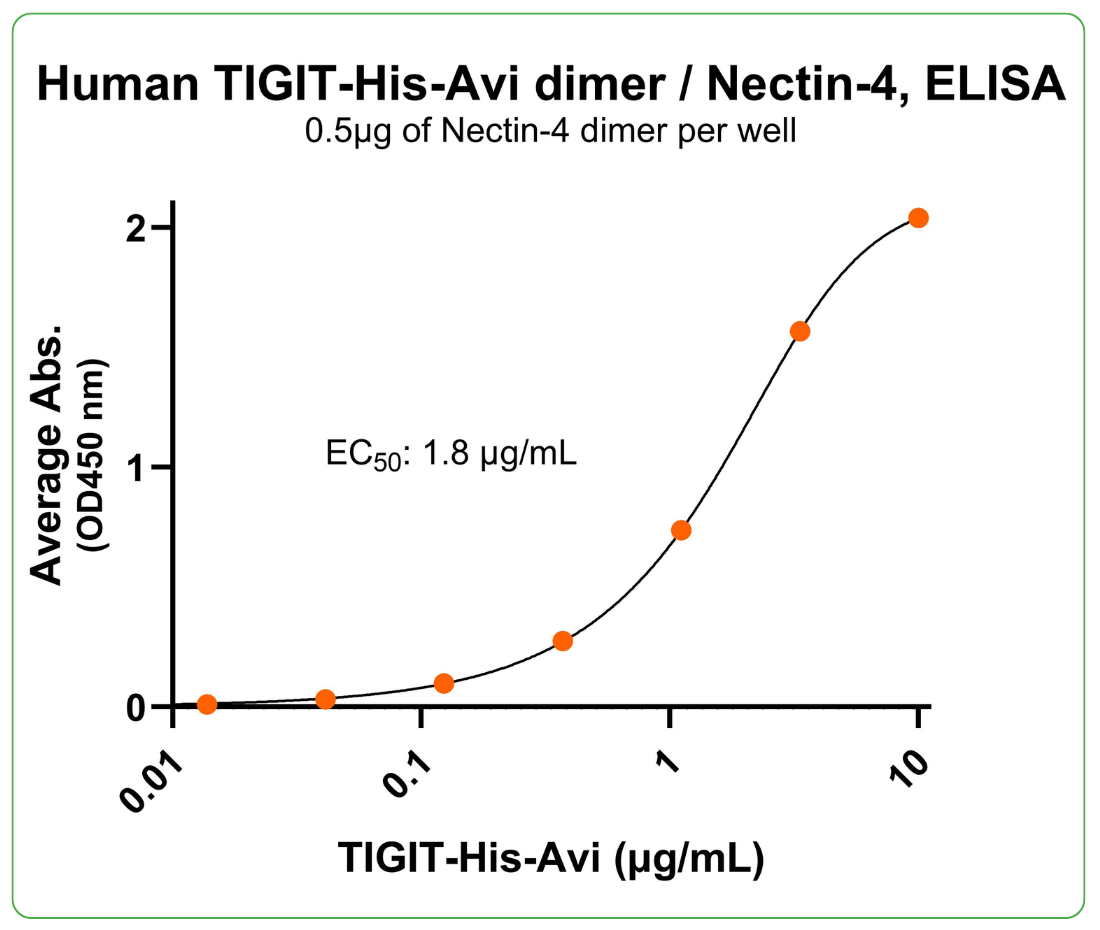

Bioactivity – Ligand Binding
Immobilized human Nectin-4 dimer protein (Cat. No. CSP-24016) at 5 μg/mL (100 μL/well) can bind TIGIT-His-Avi dimer protein (Cat. No. CSP-24028-03) with half maximal effective concentration (EC50) range of 0.88-3.53 μg/mL (QC tested).

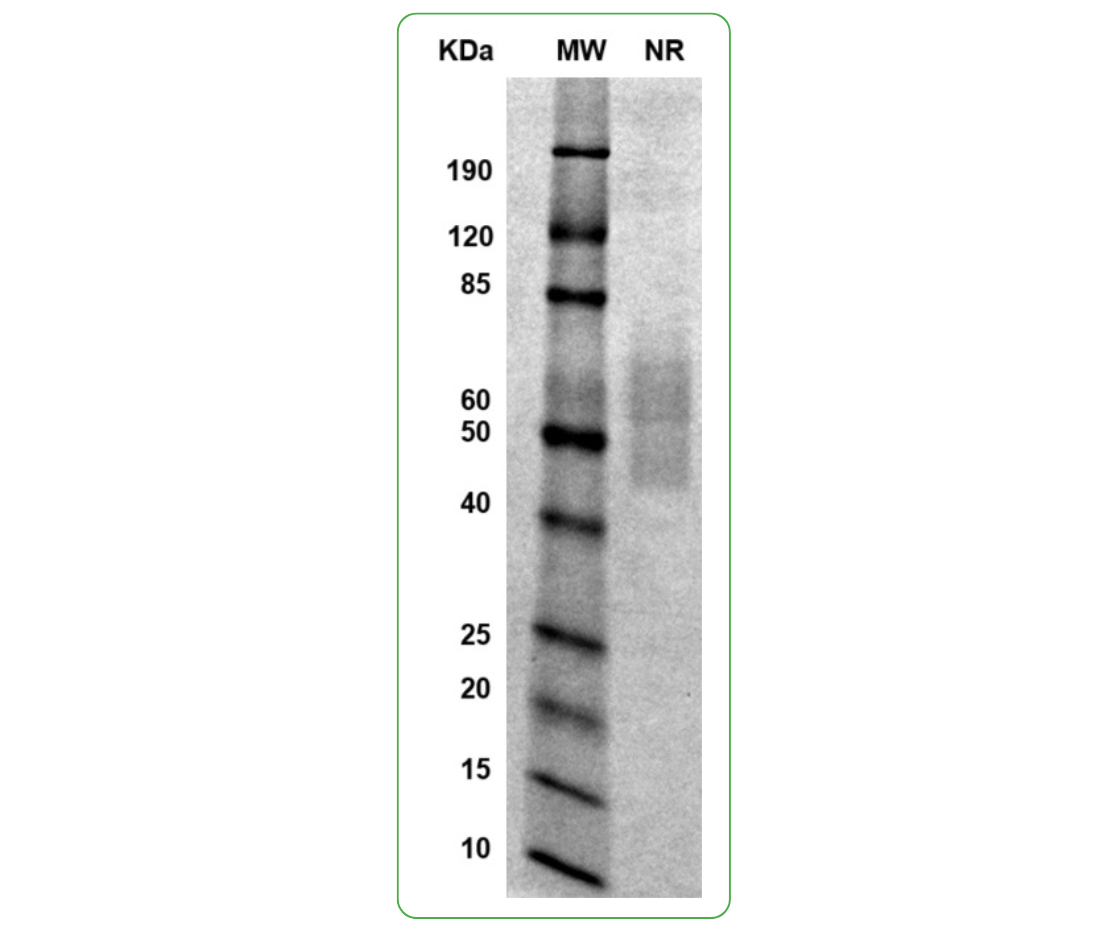

SDS-PAGE
MW: Molecular Weight marker reduced condition
NR: TIGIT dimer under non-reducing condition
Specifications
Protein Name: TIGIT
UniProt #: Q495A1
Predicted Molecular Weight: 60 kDa
SDS PAGE Molecular Weight: The migration range of the dimer under non-reducing conditions is 50-60 kDa on SDS PAGE.
Protein Construct: TIGIT dimer protein (TIGIT protein dimer) contains a TIGIT extracellular domain (UniProt# Q495A1) with a tandem His-Avi tag at the C-terminus.
Formulation: 0.22μm filtered PBS, pH 7.4
Shipping: Frozen Dry Ice
Storage: -80°C
Human TIGIT (T-cell immunoreceptor with Ig and ITIM domains) is a Type I transmembrane protein, also known as VSIG9 and VSTM3. TIGIT dimerization on the cell surface is a key mechanism in regulating immune responses. The recombinant TIGIT dimer protein is a cis-homodimer (CSP-24028-03) and contains a TIGIT extracellular domain (UniProt# Q495A1, amino acids Met22-Phe141) with a tandem His-Avi tag at the C-terminus. This protein is expressed in HEK293 cells. The TIGIT dimer-His-Avi protein is bioactive and can bind to Nectin-4 and CD155. It also binds to TIGIT-specific antibodies. This TIGIT dimer can be used as an antigen for in vitro assays and antibody screening, targeting more conformational epitopes.
Background
Human TIGIT (T-cell immunoreceptor with Ig and ITIM domains) is also known as VSIG9 (V-set and immunoglobulin domain-containing protein 9) and VSTM3 (V-set and transmembrane domain-containing protein 3). TIGIT is a type 1 membrane protein containing an immunoglobulin variable (Ig-V) domain, a transmembrane domain and cytoplasmic domain. TIGIT is an immune receptor present on peripheral memory and regulatory CD4+ T cells and natural killer (NK) cells. TIGIT binds to CD155 (the poliovirus receptor, PVR) with high affinity and binds to CD112 (PVRL2) with lower affinity. Nectin-4 is also a ligand for TIGIT. TIGIT’s action is highly dependent on its dimerization at the cell surface. TIGIT plays a role in immune suppression and is a therapeutic target for diseases where immune modulation is critical, including cancer and autoimmune diseases.
Alternate Names: VSIG9, VSTM3
